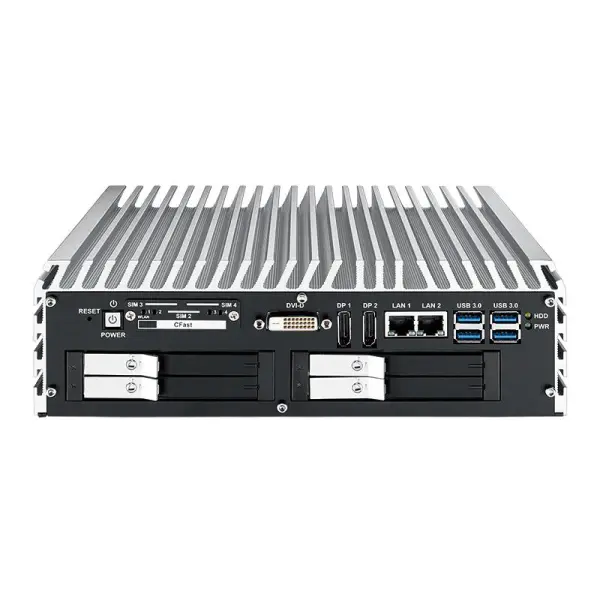

BCD-HES04-I5-I7-16RJ

4- Bay Small Form Factor Harsh Environment Server

Key Features

Up to 16TB Storage
Intel® Core™ 6th Generation Processors (i5 or i7)
Up to 32GB DDR4 RAM
Windows 10 Pro/Linux
Supports Cell, GPS, and WiFi modules
-25°C to +70°C (-13°F to +158°F) with Standard Temp Mixed Use SSDs
EN 50155 Certified
2-year Standard Warranty

2-Year Standard Warranty

Each BCD product line includes a standard hardware warranty upon purchase.

24 / 7 / 365 Support

All of BCD's products come standard with lifetime telephone support.

Request a Consultation Download Datasheet

Product Specifications

16 Port Poe Harsh Environment Server

This BCD-HES02-I5/I7-16RJ support 18-port Gigabit PoE and able to work under harsh temperatures.

Its eighteen Gigabit PoE ports allow multiple cabling to cameras and any PoE power device. Powered by an Intel® Core™ i5 or i7 processor, this unit also has SIM slots and SMA-type antenna connectors.

For storage, this high performance fanless server has four drive bays with a height of up to 15 mm and one 256G mSATA for RAID 0 and 1. The embedded device supports two 260-pin DDR4 SODIMM slots for up to 32GB of system memory.

System

Certifications

CE
FCC Class A
IP40

Expansion Slots

(4)PCIe Mini Card Slot: (1)Mini PCIe for PCIe/USB/Internal SIM Card/Optional mSATA (3)Mini PCIe for PCIe/USB/External SIM Card

I/O Ports

(4) SIM Sockets for 5G/WiFi 6/4G/3G/ LTE/GPRS/UMTS, (1) Internal, (3) External
(4)USB 3.0 (External)
(1)USB 2.0 (Internal)
16 Isolated DIO, 4 COM RS-232/422/485

Memory

Standard Configuration: 16GB (2x 8GB)
Maximum Configuration: Up to GB 32 , optional with ECC (2x DDR42133MHz SO-DIMM Slots)

Networking

(16)1GbE RJ45 PoE Ports (IEEE 802.3af/802.3at)
(2)1 GbE Non-PoE RJ45 ports

Operating System

Windows 10 Pro / Linux

Processor Passmark

Intel® Core™ i5-6440EQ: 5,394
Intel® Core™ i7-6820EQ: 6,924

Processor(s)

(1)Intel® Core™ 6th Generation Processor (Up to Cores, Threads, GHz) 443.4
(1)Intel® Core™ 6th Generation Processor (Up to 4 Cores, 8 Threads, 3.5GHz)

Video Outputs

(1)DVI-D
(2) DisplayPort interfaces, up to 4K resolution

Mechanical

Dimensions (WxDxH)

10.2 ” x 8.5 ” x 3.1 ” (260mm x 215 mm x 79mm)

EMC

CE
FCC
EN50155
EN50121-3-2

Form Factor

Small Form Factor

Manufacturer

Max. Weight

9.26 lb (4.2 kg)

Operating Humidity

95% at 70°C

Operating Temperature

Operating : -25°C to 70°C (-13°F to 158°F), Fanless
Storage: -40°C to 58°C (-40°F to 185°F), Fanless

Power Supply(s)

Power Input: 6V to 78V, DC-in
Power Interface: 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control: 16-mode (Internal)
Remote Switch: 5-pin Terminal Block
Surge Protection: Up to 200V/1ms Transient Power

Shock Endurance

IEC 60068-2-27 (with SSD, 50G, half sine, 11ms duration)

Vibration Endurance

IEC 60068-2-64 (with SSD, 5 Grms STD, random 5 to 500 Hz, 3 axis)

Warranty

2 -Year Standard

Storage

Hard Drive Bays

(4)15mm 2.5" Drive Bays
(1)256G mSATA Drive

Hard Drives Supported

SATA

Maximum Storage

Up to 16TB

RAID

JBOD
