BCDT01-ELVS

BCD Entry-Level Tower Video Recording Server

Key Features

Up to 20TB Storage
Intel® Latest Processor
Windows 11 Pro
SSD & 24/7 Duty Cycle SATA Drives
5-Year, On-site, NBD Warranty

2-Year Standard Warranty

Each BCD product line includes a standard hardware warranty upon purchase.

24 / 7 / 365 Support

All of BCD's products come standard with lifetime telephone support.

Request a Consultation Download Datasheet

Product Specifications

Economical And Performance Driven Mini Tower Video Recording Server

The BCDT01-ELVS tower video recording server delivers the performance needed at an affordable price. Equipped with the latest Intel® Core™ processor, capable of providing nearly 17% higher computing potential than the previous 13th generation, this slim and efficient workstation can power through any task.

The BCDT01-ELVS enables ample storage with up to 24TB of raw storage provided by an 24/7 duty cycle SATA hard drive. Fast booting and application loading is enabled by a dedicated 256GB NVMe OS SSD.

All appliances are built in-house in BCD’s secure facilities. BCD’s operations have been assessed by DQS Inc, who certified that we meet the ISO 9001:2015 standard of maintaining a Quality Management System.

System

Expansion Slots

(2) full-height Gen3 PCIe x1 slots
(1) full-height Gen3 PCIe x16 slot

Memory

i3: 8GB DDR5 (1x 8GB) Maximum Configuration Supported 64GB (2x 32GB)
i5/i7: 16GB DDR5 (1x 16GB) Maximum Configuration Supported 64GB (2x 32GB)

Networking

(1) 1GbE RJ45 Ports

Operating System

Windows 11 Pro

Processor Passmark

i3:15,047
i5:32,641
i7:44,215

Processor(s)

Latest Intel Core i3: 4 Cores, 8 threads, 4.70GHz
Latest Intel Core i5: 14 Cores, 20 threads, 5.00GHz
Latest Intel Core i7: 20 Cores, 28 threads, 5.20GHz

USB(s)

Front: (2) USB 2.0 (480 Mbps) - (1) USB 3.2 Gen 1 (5 Gbps) Type-C - (1) USB 3.2 Gen 1 (5 Gbps)

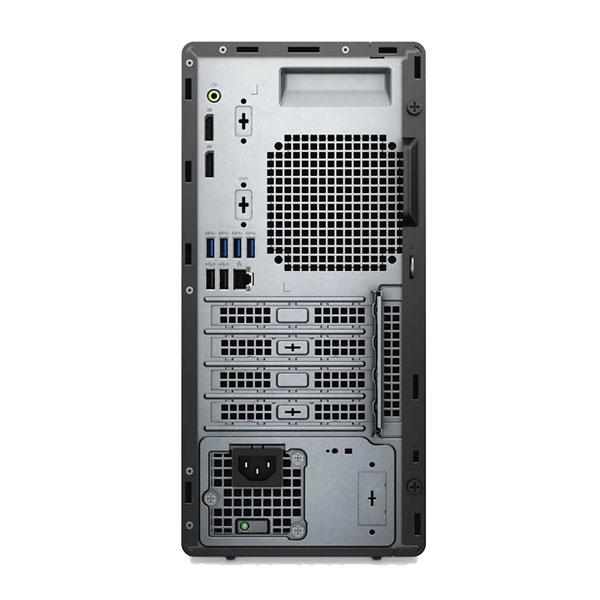

Rear: (2) USB 3.2 Gen 1 (5 Gbps) - (2) USB 2.0 (480 Mbps) ports with SmartPower On

Video Outputs

(1) DisplayPort 1.4a (HBR2) port
(1) HDMI 2.1 (TMDS) port
(1) VGA Port

Mechanical

Dimensions (WxDxH)

Height: 324.30 mm (12.77 in.) Width: 154 mm (6.06 in.) Depth: 293 mm (11.54 in.)

Form Factor

Tower

Heat Dissipation

1227 BTU/hr

Manufacturer

Max. Weight

6.78 kg (14.95 lb)

Operating Humidity

20 ~ 80% (non-condensing)

Operating Temperature

10°C to 35°C (50°F to 95°F)

Power Supply(s)

360W Platinum (90 VAC–264 VAC)

Warranty

5-Year, On-site, Next Business Day

Storage

Hard Drive Bays

(1) 3.5” Bay

Hard Drives Supported

PCIe NVMe
SATA

Maximum Storage

Up to 24TB
